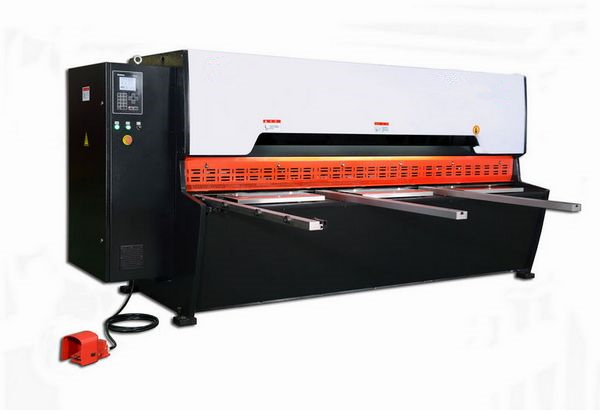

High Speed CNC Hydraulic Shearing Machine

High Speed CNC Hydraulic Shearing Machine

Compared with VR series, HVR series not only has a fresh new look, but also has great promotion of functions.

Servo motor and oil pump combined control system can improve the work efficiency by 25%.

Servo motor controlled hydraulic system can bring noise down and reduce the energy consumption by 30%.

Reliable backgauge with new structure can make maximum speed up to 350 mm/s.



Item

Unit

Specification

Shearing Thickness

Mild Steel 450Mps

mm

0.5~6

Stainless Steel 600Mpa

mm

0.5~4

Aluminum 300Mpa

mm

0.5~8

Shearing Length

mm

3070

Shearing Angle

°

0°30'-2°

Back-gauge Stroke

mm

5~1000

Back-gauge Speed

mm/s

350

Back-gauge Accuracy

mm

+0.1

Servo Motor Power

kw

1

Stroke Time



24-38

Cylinder Capacity

L

230

No. of Clamping



14

Main Motor

KW

10.8

CNC System



DELEM DAC360

No. and Length of Support Arm

mm

3*1400
