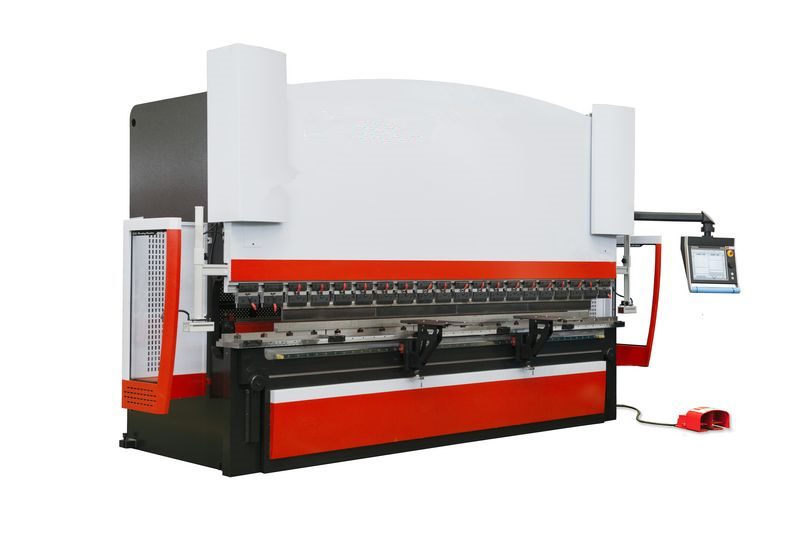

● This series of Pressbrake not only features with all the characteristics of PR Series, but the partial functions is increased a lot while compared with PR series.
● The machine speed is adjustable , the approaching speed and return speed can easily reach 220mm/s and the working efficiency is greatly increased by 40% approximately.
● Hige-speed, high-accuracy, high-reliability backgauge is adopted,X axis speed can reach 500mm/s and Z axis speed can reach 1200mm/s. Thus, the production efficiency is largely increased.
● The application of new type of hydraulic system extends the service life.
|
Main pecification |
Unit |
HPR |
||
|
Model |
|
100×3100 |
150×3100 |
|
|
Bending Length |
KN |
|
|
|
|
Main Driving Type |
mm |
1000 |
1500 |
|
|
Bending Length |
mm |
3100 |
3100 |
|
|
Column Distance |
mm |
2700 |
2700 |
|
|
Throat Depth |
mm |
400 |
400 |
|
|
Stroke of Ram |
mm |
265 |
265 |
|
|
Table Height |
mm |
830 |
830 |
|
|
Table Width |
mm |
60 |
70 |
|
|
Closed Height |
mm |
480 |
480 |
|
|
Speed |
Approaching |
mm/s |
220 |
180 |
|
Working |
mm/s |
10-20 |
10-14 |
|
|
Return |
mm/s |
220 |
180 |
|
|
Main Motor Power |
KW |
15 |
22 |
|
|
Oil Tank Capacity |
L |
400 |
400 |
|
|
Backgauge |
Precision |
mm |
±0.1 |
±0.1 |
|
Stroke |
mm |
500 |
500 |
|
|
Speed |
mm/s |
600 |
500 |
|
|
Power |
KW |
0.85 |
0.85 |
|
|
Number of Oil Tank |
pcs |
3 |
3 |
|
|
L×W×H H Dimension |
mm |
L:3600 |
L:3600 |
|
|
W:1600 |
W:1750 |
|||
|
H:2700 |
H:2700 |
|||
