3015 |
4020 |
||||||
|

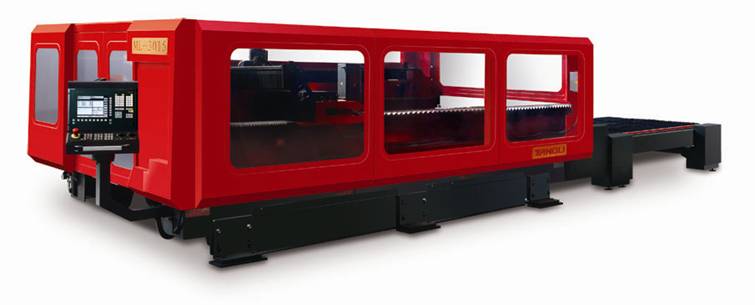

Gantry Flying Optical Path |
||||||||
|
Machining Area |
X 3000mm |
X 4000mm |
||||||
|
Y 1500mm |
Y 2000mm |
|||||||
|
Z 100mm |
Z 100mm |
|||||||
|
Max. Machining Weight |
850kg |
1300kg |
||||||
|
Max. Positioning Speed |
106m/min |
|||||||
|
Positioning Accuracy |
0.06mm |
|||||||
|
Repositioning Accuracy |
0.015mm |
|||||||
|
Max. Cutting Speed |
20m/min |
|||||||
|
Laser Cooling |
Closed Inner Circulation, Temperature Control |
|||||||
|
Laser |
2000W 2500W 3000W 3300W 4000W |
|||||||
|
Laser |
PANASONIC High Flow DC Excited CO2 Laser |
|||||||
|
Structure |
Standard |
|||||||
|
Rated Power |
2000W |
2500W |
3300W |
4000W |
||||
|
Output |
±2% |
|||||||
|
Wave |
10.6μm |
|||||||
|
Laser Modal |
TEMoo (Main) |
|||||||
|
Laser Gas |
CO2:N2:He=1.7%:23.4%:74.9%(Balanced) |
|||||||
|
Input Power |
23KVA |
34KVA |
40KVA |
50KVA |
||||
|
Laser Gas Consumption |
30L/h |
40L/h |
||||||
|
Max. Cutting Capacity |
Carbon Steel |
12mm |
16mm |
18mm |
22mm |
|||
|
Stainless Steel |
6mm |
8mm |
10mm |
12mm |
||||
|
Laser |
PANASONIC, JAPAN |
EASTERN LASER, NANJING |
||||||
|
Rated Power |
2000W |
2500W |
3300W |
4000W |
2000W |
3000W |
||
|
Max. Cutting Capacity |
Carbon Steel |
8mm |
10mm |
16mm |
20mm |
10mm |
16mm |
|
|
Stainless Steel |
4mm |
6mm |
8mm |
10mm |
5mm |
6mm |
||
|
Outline Size |
8.2m |
11.2m |
||||||
|
4.5m |
4.8m |
|||||||
|
1.9m |
2.0m |
|||||||
|
Guards & Operation Panel Included |
||||||||
|
Weight |
10000kg |
12000kg |
||||||
