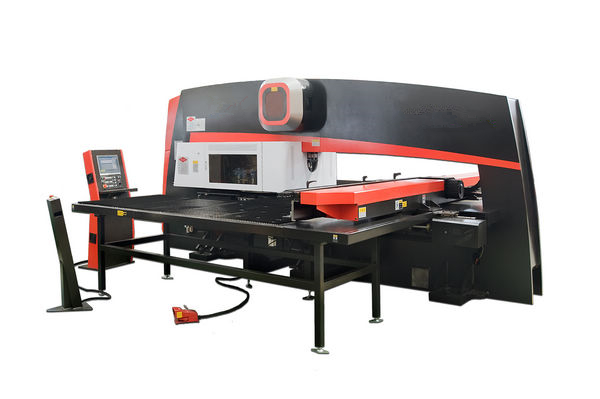

Specification |
Unit |
WSD-200 |
WSD-300 |
WSD-300B |
|
|
Punch Force |
KN |
200 |
300 |
300 |
|
|
Max. Processing Sheet Size(with one reposition) |
mm |
1250×5000 |
1250×5000 |
1250×5000 |
|
|
Max. Processing sheet Thickness |
mm |
3.2 brush worktable |
3.2 brush worktable |
6.4 Steel Ball Worktable |
|
|
Max. Punch Diameter per Once |
mm |
Φ88.9 |
Φ88.9 |
Φ88.9 |
|
|
No.of Station |
no. |
32 |
32 |
32 |
|
|
Hole Accuracy |
mm |
±0.10 |
±0.10 |
±0.10 |
|
|
Max. Sheet Moving Speed (sheet with 1min thickness) |
X |
m/min |
100 |
100 |
100 |
|
Y |
80 |
80 |
80 |
||
|
Max.Punch Hit at 1mm pace & 4mm stroke |
hpm |
1000 |
1000 |
1000 |
|
|
Max.Punch Hit at 25mm pace & 4min stroke |
X |
hpm |
500 |
500 |
500 |
|
Y |
400 |
400 |
400 |
||
|
Turret Rotating Speed |
rpm |
30 |
30 |
30 |
|
|
CNC System |
BECKHOFF |
BECKHOFF |
BECKHOFF |
||
|
Controlling Axis |
no. |
7 |
7 |
7 |
|
|
Both of the models mentioned above can be designed into the stroke of 1500mm |
|||||
