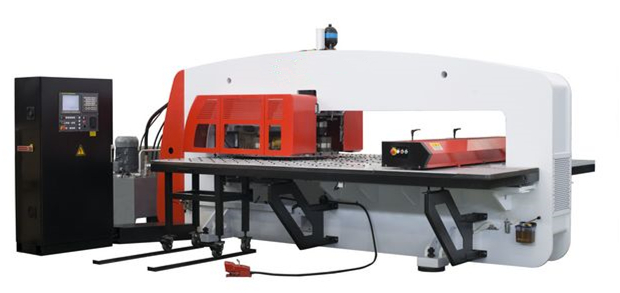

CNC Hydraulic Turret Punching Mahcine

Specification

Unit

WHP-300

WHP-500A

Punch Force

t

30

50

Max. processing Size
(With One Reposition)

mm

1250×5000

1500×5000

1500×5000

1250×5000

1500×5000

Feeding Speed

m/min

X:60 Y:60

X:60 Y:60

X:60 Y:60

X:60 Y:60

X:60 Y:60

No. of Station

no.

32

32

30

30

32

No. of Auto-index

no.

2

2

2

2

2

No. of Controlling Axis

no.

4

4

4

4

4

Processing Thickness

mm

6.35

6.35

6.35

6.35

6.35

Max. Nibbling Speed

hpm

/

/

/

/

/

Max. Punch Hit

hpm

600

600

600

300

300

Punch  Hit At 25mm  Pace

hpm

X:350  Y:250

X:320 Y:220

X:300  Y:200

X:200  Y:150

X:200  Y:150

Max. punch Diameter Per Time

mm

Φ88.9

Φ88.9

Φ88.9

Φ88.9

Φ88.9

Main Motor Power

KW

11

11

11

15

15

Hole Accuracy

mm

±0.10

±0.10

±0.10

±0.15

±0.15

Cnc System

FANUC

FANUC

FANUC

FANUC

FANUC

Turret Rotate Speed

rpm

30

30

30

30

30

Outline Dimension

mm

5020×2680
×2340.5

5020×5000
×2340.5

5020×5000
×2340.5

5020×5000
×2340.5

5020×5000
×2340.5

Machine Structure

Streamline O-Type

Streamline O-Type

O-Type

O-Type

O-Type

Specification

Unit

WHP-500B

WHP-600

WHP-800

Punch Force

t

50

60

80

Max. processing Size

(With One Reposition)

mm

1250×5000

1500×5000

1250×2500

1250×5000

1250×2500

1250×5000

Feeding Speed

m/min

X:60 Y:60

X:60 Y:60

X:60 Y:60

X:60 Y:60

X:60 Y:60

X:60 Y:60

No. of Station

no.

32

32

30

30

32

32

No. of Auto-index

no.

2

2

/

/

/

/

No. of Controlling Axis

no.

4

4

3

3

3

3

Processing Thickness

mm

8

8

8

8

8

8

Max.  Nibbling  Speed

hpm

/

/

/

/
