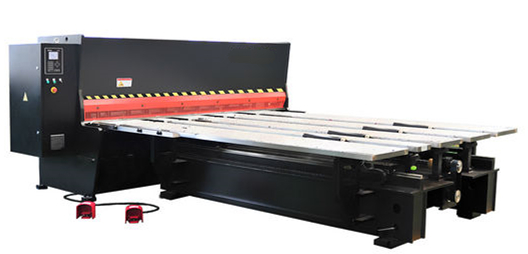

System precisely controls backguage , shearing strokes ,cutting angle and clearance between the upper and lower blades.
● The ram stroke can be adjusted automatically to realize fast and accurate shearing of short workpieces and improve productuvuty
● The high speed and large storke backguage is driven by linear guideway and ballscrew and the speed is up to 250mm/s and the stroke is up to 1000mm.
● The system can automatically adjust the clearance between upper and lower blades for different material of different thickness to improve shearing quality.
|
|
|
6×3000 6×4000 |
|
Thickness |
mm |
0.5-6 |
0.5-6 |
|
|
Width |
mm |
3070 |
4070 |
|
|
Storkes |
hpm |
22-35 |
16-34 |
|
|
Front Feeding |
Stroke |
mm |
2500 |
2500 |
|
Speed |
mm/s |
100 |
100 |
|
|
Precision |
mm |
±0.1/300 |
±0.1/300 |
|
|
Cutting Angle |
。 |
0.5°- 2° |
0.5°- 2° |
|
|
Clamping Jacks |
pcs |
14 |
18 |
|
|
Tank Capacity |
L |
230 |
230 |
|
|
Weight |
Kg |
11000 |
15850 |
|
