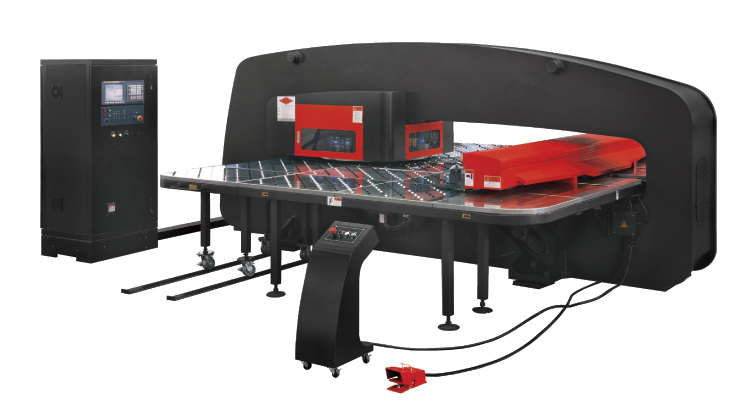

CNC turret punchig machine
The machine is of wide closure-type frame, which is solid, receiving tempering treatment. It has follwing features: streamline body with side pin-positioning, sleeve structure and thick turret, accurate positioning, good guiding, high accuracy adjustable worm and gear mechanism,German H+L hydraulic station with high performance and low energy-consumption, special Japanese FANUC Oip CNC Control, long ballscrew and guideway with high speed and auto-lubrication, universal pneumatic and electric parts, auto floating clamp and stainless worktable with steel ball and brush on it.
|
Capacity |
kN |
300 |
300 |
300 |
300 |
300 |
|
|
Max. Machining Sheet (Repositioning) |
mm |
1250 |
1250 |
1250 |
1500 |
1500 |
|
|
2500 |
4000 |
5000 |
4000 |
5000 |
|||
|
Slide Stroke |
mm |
32 |
32 |
32 |
32 |
32 |
|
|
Max. Plate Thk |
mm |
6.35 |
6.35 |
6.35 |
6.35 |
6.35 |
|
|
Max. Punching Dia. |
mm |
Φ88.9 |
Φ88.9 |
Φ88.9 |
Φ88.9 |
Φ88.9 |
|
|
Die Qty. |
pc |
30 |
30 |
30 |
30 |
30 |
|
|
Punching Accuracy |
mm |
±0.10 |
±0.10 |
±0.10 |
±0.10 |
±0.10 |
|
|
Slide SPM |
mm |
600/*900 |
600/*900 |
600/*900 |
600/*900 |
600/*900 |
|
|
Max. Speed |
m/min |
106 |
106 |
106 |
106 |
106 |
|
|
Frame |
|
Straight |
Straight |
Straight |
Straight |
Straight |
|
|
O-Type |
O-Type |
O-Type |
O-Type |
O-Type |
|||
|
Throat Depth |
mm |
1275 |
1275 |
1275 |
1525 |
1525 |
|
|
Control Axis |
pc |
4 |
4 |
4 |
4 |
4 |
|
|
Turret Speed |
r/min |
30 |
30 |
30 |
30 |
30 |
|
|
Max. Punching Dia. Of Rotary Station |
mm |
Φ88.9 |
Φ88.9 |
Φ88.9 |
Φ88.9 |
Φ88.9 |
|
|
Power |
kw |
25 |
25 |
25 |
25 |
25 |
|
|
Max. Weight |
kg |
156 |
156 |
210 |
210 |
235 |
|
|
Air Pressure |
MPa |
0.55 |
0.55 |
0.55 |
0.55 |
0.55 |
|
|
Outline Size (FB×LR×H) |
mm |
5050×2700×2010 |
5050×4200×2010 |
5050×5200×2010 |
5650×4200×2010 |
5650×5200×2010 |
|
|
Weight |
t |
19.5 |
20 |
20.5 |
21.5 |
22 |
