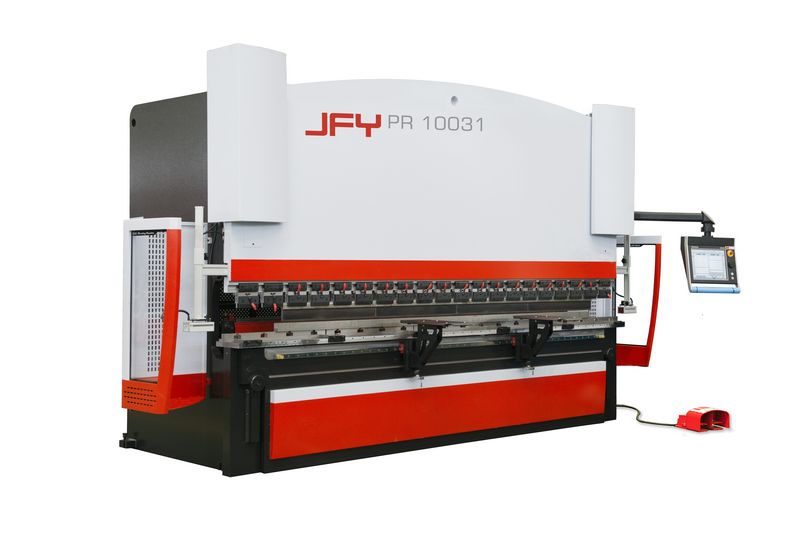

● The electric and hydraulic system controls the synchronized movemend of the two oil cylinders, thus ensures the high synchronized accuracy ,bending accuracy and repeat positiining accuracy.
● Featured with hydraulic automatic compensation system to avoid the effects on the workpiece due to the deformation of ram.The compensation is controlled by CNC system with high accuracy.
● Multi-functional backgauge which can be expanded into 6 axes ,the workpiece bending can be realized flexibly.
● The frame is assembled in one time after welding,it is processed by CNC pentahedron processing center,ensuring the rigidity and processing accuracy of the frame.
● Integrated hydraulic contrilling system decreases pipeline,thus avoids oil leakage and improves the stability if performance, also the appearance of the machine is beautified.
● Holland Delem CNC system with the latest electric circuit and TFT display menu with high distinguish rate, is the most advanced CNC system for pressbrake.
|
Main Specification |
Unit |
PR |
||||||||||||
|
Model |
|
30× |
50× |
60× |
60× |
100× |
100× |
30× |
150× |
|||||
|
Bending Length |
KN |
Hydraulic |
||||||||||||
|
Main Driving Type |
mm |
300 |
500 |
600 |
600 |
600 |
1000 |
1000 |
1500 |
|||||
|
Bending Length |
mm |
1050 |
1300 |
1500 |
2050 |
2550 |
3100 |
4100 |
3100 |
|||||
|
Column Distance |
mm |
700 |
900 |
1100 |
1600 |
2000 |
2600 |
3600 |
2600 |
|||||
|
Throat Distance |
mm |
300 |
300 |
300 |
300 |
300 |
400 |
400 |
400 |
|||||
|
Stroke of Ram |
mm |
165 |
165 |
165 |
165 |
165 |
215 |
215 |
215 |
|||||
|
Table Height |
mm |
780 |
780 |
830 |
830 |
830 |
830 |
830 |
830 |
|||||
|
Table Width |
mm |
50 |
50 |
50 |
50 |
50 |
60 |
70 |
70 |
|||||
|
Closed Height |
mm |
420 |
420 |
420 |
420 |
420 |
420 |
420 |
420 |
|||||
|
Speed |
Approaching |
mm/s |
160 |
160 |
150 |
150 |
150 |
160 |
160 |
120 |
||||
|
Working |
mm/s |
10 |
10 |
11 |
11 |
11 |
10 |
10 |
9 |
|||||
|
Rrturn |
mm/s |
120 |
120 |
120 |
120 |
120 |
130 |
120 |
110 |
|||||
|
Main Motor Power |
KW |
4 |
5.5 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
11 |
|||||
|
Oil Tank Capacity |
L |
160 |
170 |
200 |
250 |
300 |
350 |
500 |
400 |
|||||
|
Backgauge |
Precision |
mm |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
||||
|
Stroke |
mm |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
|||||
|
Speed |
mm/s |
300 |
300 |
300 |
300 |
300 |
300 |
300 RELATED PRODUCTSCATEGORIESLATEST NEWS
