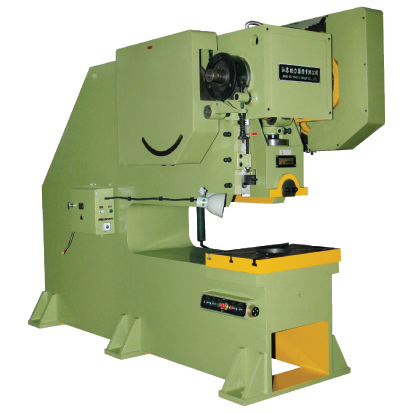

Deep Opening Pressing Machine O21

		O21S-6.3	O21S-10	O21S-16	O21S-25A	O21S-40A
Capacity	kN	63	100	160	250	400
Nominal Force	mm	2	2	2	2.5	4
Slide Stroke	mm	35	60	70	80	120
SPM	min-¹	170	145	125	60	55
Max. Die Height	mm	110	130	170	180	220
Die Height Adjustment	mm	30	35	45	70	80
Between Slide Center & Frame	mm	700	700	700	700	700
Bolster (FB×LR)	mm	200×310	240×360	320×480	400×600	480×700
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)	mm	Φ60	Φ120×20×Φ100	Φ100	Φ120	Φ220×25×Φ180
Bolster Thickness	mm	40	50	60	70	80
Bolster Opening (Dia.×FB×LR)	mm	Φ140×110×160	Φ130×90×180	Φ210×160×240	200×200	200×240
Slide Area (FB×LR)	mm	120×140	150×170	180×200	210×250	270×320
Shank Hole (Dia.×Dpth)	mm	Φ30×55	Φ30×55	Φ40×60	Φ40×70	Φ50×70
Between Columns	mm	162	182	220	350	390
Motor Power	kW	0.75	1.1	1.5	2.2	4
Outline Size (FB×LR×H)	mm	1540×700×1525	1620×730×1800	1680×840×1880	1790×990×2288	1965×1180×2295

		O21S-63A	O21S-80A	O21S-100A	O21S-125A
Capacity	kN	630	800	1000	1250
Nominal Force	mm	4	5	6	6
Slide Stroke	mm	120	130	140	140
SPM	min^-1	50	45	38	38
Max. Die Height	mm	270	290	320	320
Die Height Adjustment	mm	80	100	100	100
Between Slide Center & Frame	mm	450/800	450/800	450/760	450/760
Bolster (FB×LR)	mm	480×710	580×860	710×1100	720×1200
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)	mm	Φ200×45×Φ180	Φ200×45×Φ180	Φ260×50×Φ220	Φ260×50×Φ220
Bolster Thickness	mm	90	100	120	120
Bolster Opening (Dia.×FB×LR)	mm	200×250	220×260	260×290	260×290
Slide Area (FB×LR)	mm	280×320	280×380	420×560	420×560
Shank Hole (Dia.×Dpth)	mm	Φ50×80	Φ60×75	Φ60×80	Φ60×80
Between Columns	mm	450	450	580	580
Motor Power	kW	5.5	7.5	7.5	11
Outline Size (FB×LR×H)	mm	2220×1350×2600	2220×1380×2650	2530×1555×2990	2550×1610×2990
