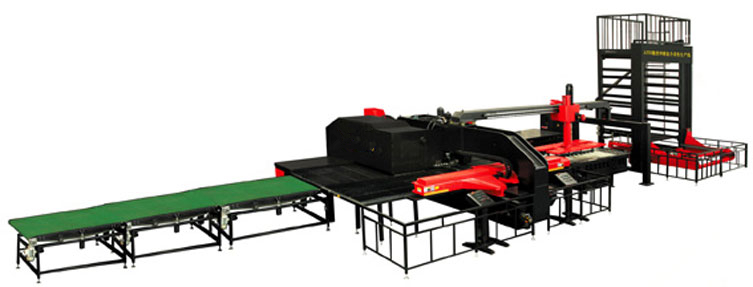

CNC Punch-shearing Combined FMS

Name

Specification

APSS

EPSS

Cubic Warehouse

Max. Sheet Size

1250×2500mm

1250×2500mm

Max. Loading Height

100mm

100mm

No. of Column

7

7

Load of per Column

3000kg

3000kg

Loading Robot

Max. Sheet Size

1250×2500mm

1250×2500mm

Max. Sheet Weight

125kg

125kg

Horizontal Moving Speed

40m/min

40m/min

Vertical Moving Speed

15m/min

15m/min

CNC Punch Machine

Punching Force

300KN

200KN

No. of Station

32

32

No. of Station

2

2

Max. Punching Diameter

Φ88.9

Φ88.9

Max. sheet Thickness

6.35mm

6.35mm

Max. Sheet Moving Speed

X:100m/min;Y:80m/min

X:120m/min;Y:80m/min

Speed of Turret

30rpm

30rpm

Max. Hit Speed

900hpm

1000hpm

Accuracy

±0.10mm

±0.10mm

Main Driven Type

Hydraulic Driven

Servo Motor Driven

Right Angle Shear

Max. Sheet Size

Al:4mm

Al:5mm

Carbon Steel:3mm

Carbon Steel:4mm

Stainless Steel:2.5mm

Stainless Steel:3mm

Sheet Thickness

0.8mm

0.8mm

Gap Between Blades

Automatically Adjustable

Automatically Adjustable

The Length of Blade

X:800mm(Shear is Available)

X:800mm(Shear is Available)

Y:1250mm

Y:1250mm

Main Driven Type

Hydraulic Driven

Servo Motor Driven

Sorting Device

Max. Size

X:500mm

X:500mm

Y:500mm

Y:500mm

Min. Size

X:100mm

X:100mm

Y:100mm

Y:100mm

Transmission Speed

40m/min

40m/min
