◆ Separated taut bolts structure, the whole body has high intensity and rigidity.
◆ Imported rolling guide rail.
◆ Adopts dynamic balance device to increase dynamic precision of bottom dead point.
◆ Combined pneumatic friction clutch and brake.
◆ Duplex valves imported.
◆ Electric compelling oil lubrication system.
◆ Control by PLC with international brand.
◆ Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand
◆ Equipped with hydraulic overload protecting device.
◆ Electric shut height adjustment with digital display.
◆ Electronic cam device with intelligent top dead center stop function and several safety function.
◆ Optional equipped with multi level die sets.
◆ Equipped optional coiler, leveler and feeding device to realize auto produce of the pres.

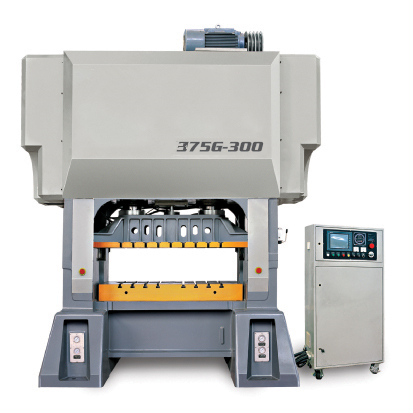

375G-80
375G-125
375G-200
375G-300
Capacity
KN
800
1250
2000
3000
Nominal Force
mm
3
3
3
3
Slide Stroke
mm
30
30
30
30
SPM
min-1
200-550
200-500
150-450
150-400
Max. Die Height
mm
380
400
420
450
Die Height Adjustment
mm
50
50
60
60
Bolster (FB×LR)
mm
750×1040
850×1200
950×1700
1000×2000
Bolster Thickness
mm
150
160
200
200
Bolster Opening (FB×LR)
mm
150×850
200×1000
250×1350
300×1600
Slide Area (FB×LR)
mm
550
600
700
750
1040
1200
1700
2000
Main Motor Power
kW
22
30
45
55
Adjusting Motor Power
kW
0.75
1.1
1.5
2.2
Outline Size (FB×LR×H)
mm
2700×1800×3100
2800×1900×3200
3400×2300×3500
2500×3600×3900
Feed Level
mm
170±15
180±15
190±15
200±15
Net Weight
kg
18500
22000
35000
60000
