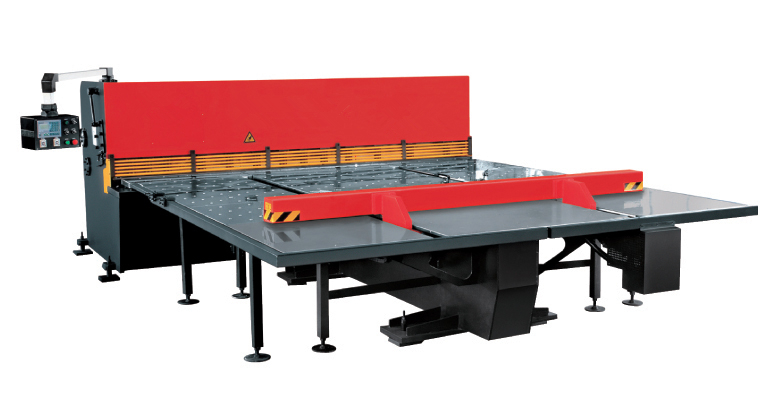

CNC swing shearing Machine S57

Product description:
INQUIRY

CNC swing shear, the back gauge is CNC controlled. The blade clearance can be adjusted manually. The moving part can be Iubricated automatically, The pneumatic material support device is optional.


		6×2500	6×3200
Plate Thickness	mm	6	6
Plain Steel	mm	6	6
Plate Width	mm	2500	3200
SPM	min^-1	≥20	≥18
Shear Angle	°	1°30″	1°30″
Back Gauge Length	mm	800	800
Back Gauge Speed	mm/s	150	150
Back Gauge Accuracy	mm	±0.15	±0.15
Oil Tank	L	260	350
Weight	kg	4800	6580
Outline Size (L×W×H)	mm	3130×1570×1600	3840× 1610×1620
